Pulley Type Wire Drawing Machine

Pulley Type Wire Drawing Machine

The pulley wire drawing machine is called pulley is because when drawing metal wires, every drum will pass through a wheel pulley. Pulley wire drawing machine is also called OTOT type wire drawing machine or bull block wire drawing machine. Metal Tech Pulley Type Wire Drawing Machine can draw the wire to the wire diameter specified by the customer according to the needs of users. Which is widely used in steel wire, all kinds of wire mesh, nails, screws and other standard parts of the production and pretreatment of metal products. Our machine body adopts integral steel plate welding, and the thickness of steel plate reaches 14mm, which makes the machine more solid and stable during operation;All our machines are equipped with hard tooth surface and silent high-speed reducer. Compared with the belt transmission used in most other factories, the advantage of reducer transmission is that it is quieter, faster, more torque and more durable (the belt is easy to be damaged).The whole machine adopts the electrical control, which is more intelligent and advanced


Metal Tech Pulley Type Wire Drawing Machine belongs to the metal products equipment industry, which can draw the wire to the wire diameter specified by the customer according to the needs of users. It is widely used in steel wire, all kinds of wire mesh, nails, screws and other standard parts of the production and pretreatment of metal products.



Metal Tech Pulley Type Wire Drawing Machine is a kind of wire drawing machine, which is the most widely used wire drawing machine. It has the characteristics of high-cost performance, high speed and low noise.

Get Pulley Wire Drawing Machine Prices!

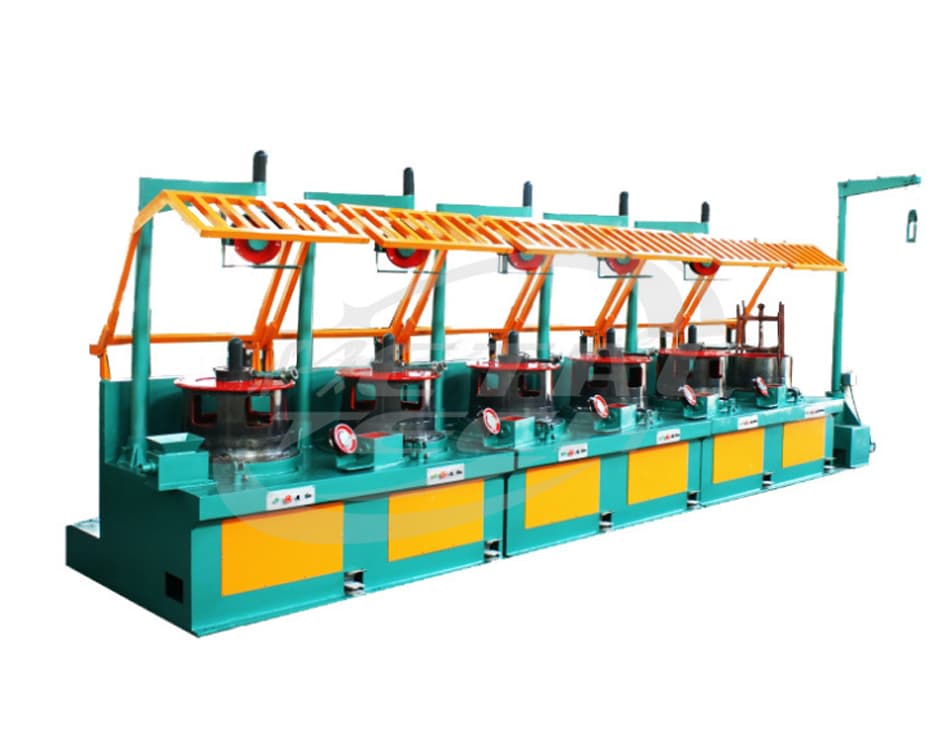

Pulley Type Wire Drawing Machine

Pulley Type Wire Drawing Machine Specifications

Model560550450350
Material Intensityδb≥110kg/mm2120kg/mm2128kg/mm2δb≤140kg/mm2
Max. Dia. Of Inlet Wire6.5mm-4.4mm6.5mm4mm2.6-1.5mm
Min. Dia. Of Outlet Wire2.6mm-1.8mm2.2mm1.6mm1.2-0.8mm
Max. average condensation30%20%20%21%
Total Condensation78-88.5%78%77.90%78%
Max. Speed of Block245m/min260m/min280m/min200m/min
Total Power22/30kw18.5/22kw11/15kw5.5/7.5kw


Pulley Type Wire Drawing Machine Advantages

Metal tech Wheel Type Wire Drawing Machine use high-quality material parts, strict quality management all these guarantee superior quality and long performance Wheel Type Wire Drawing Machine life.

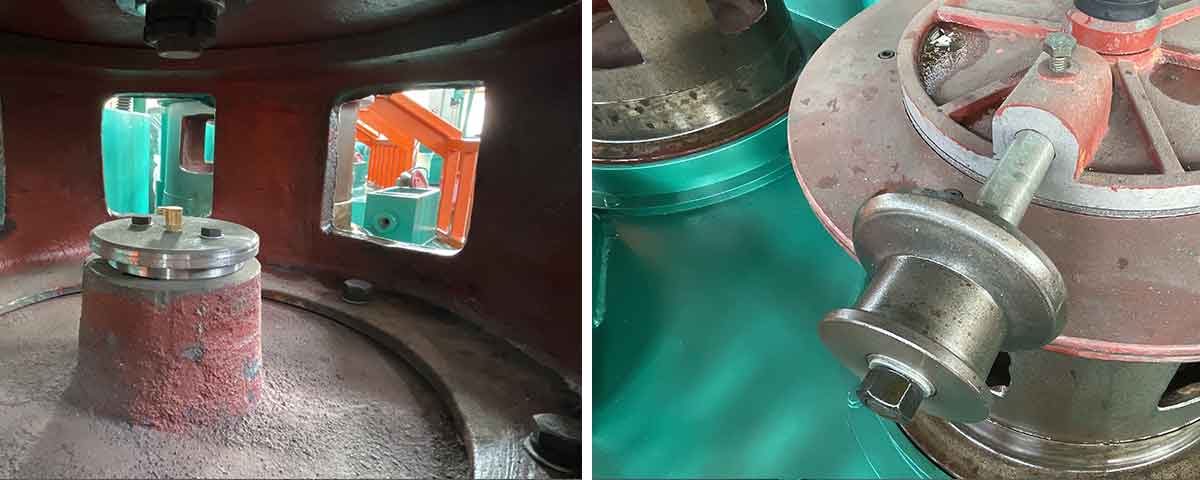

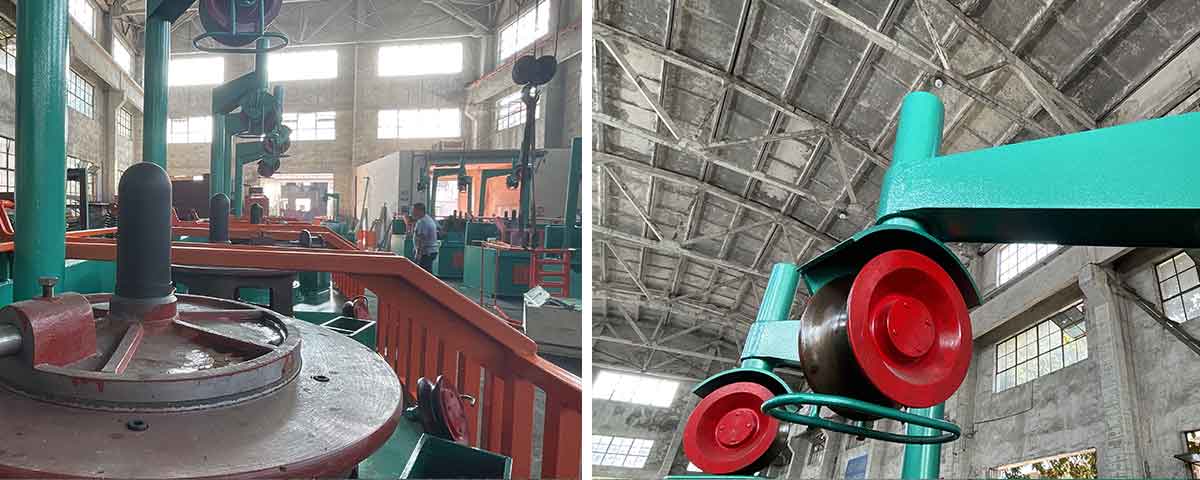

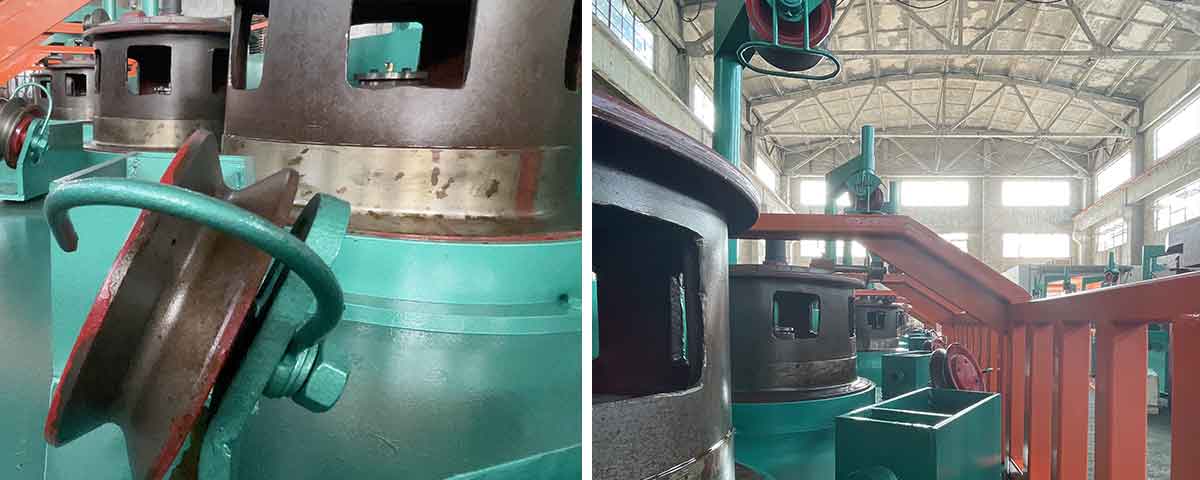

pulley of oto type wire drawing machine

Pulley Type Wire Drawing Machine After Sale Service

1.One set of every detail manual operation and maintenance

2.Installation and commissioning (point 7 in terms)

3.Training program (include training the factory operator and technical)

4.Installation and commissioning report with all the information which from the whole perio

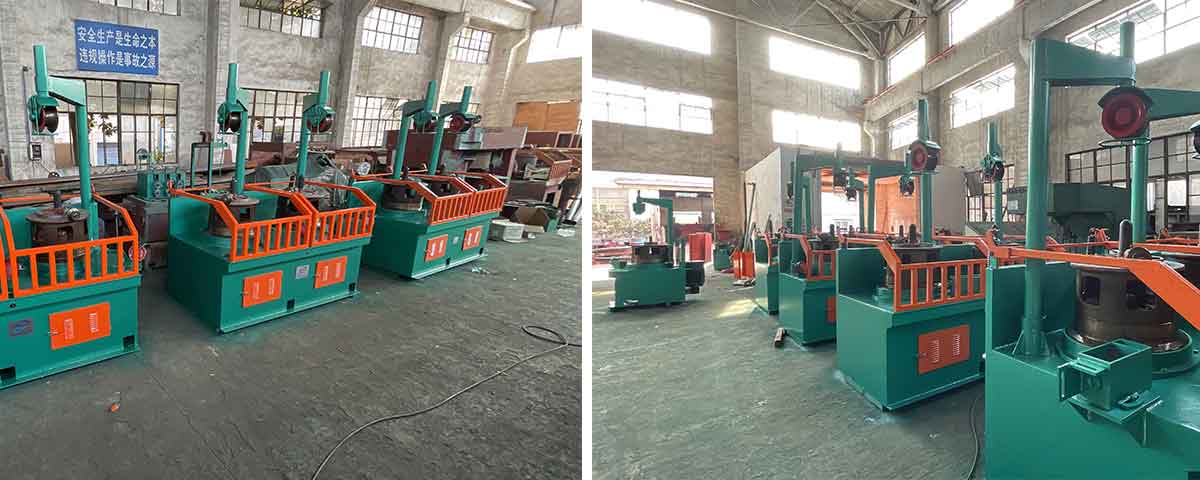

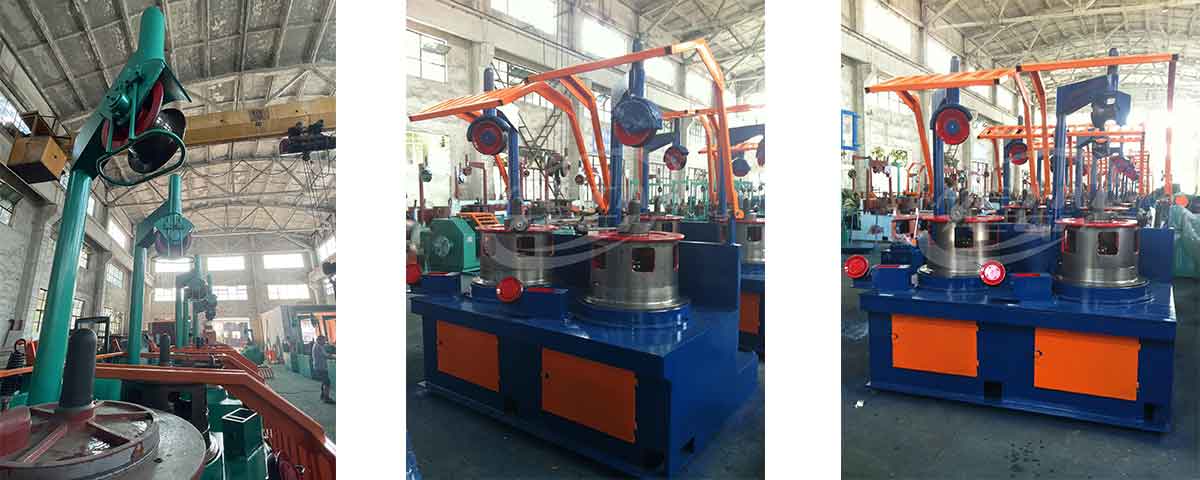

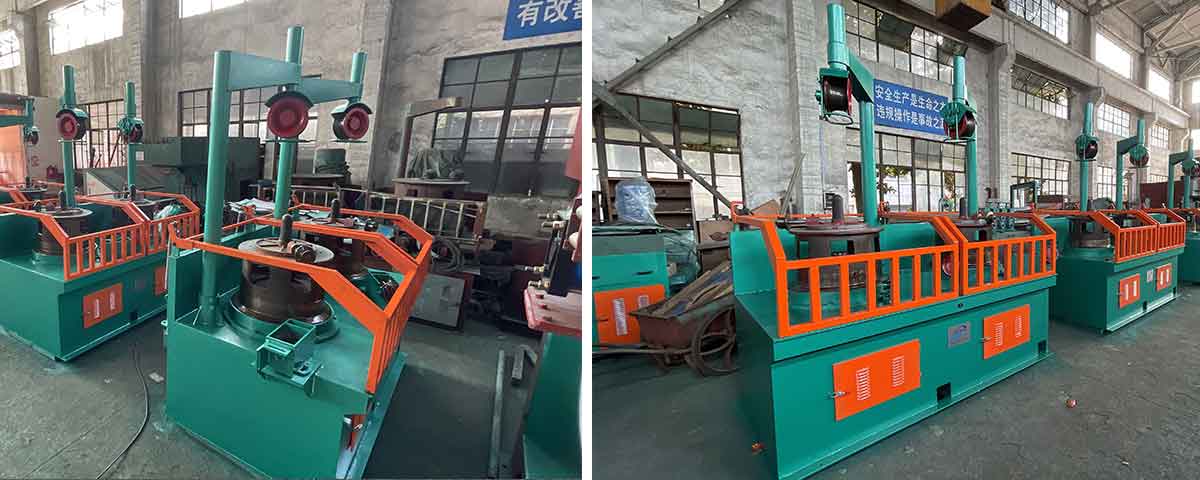

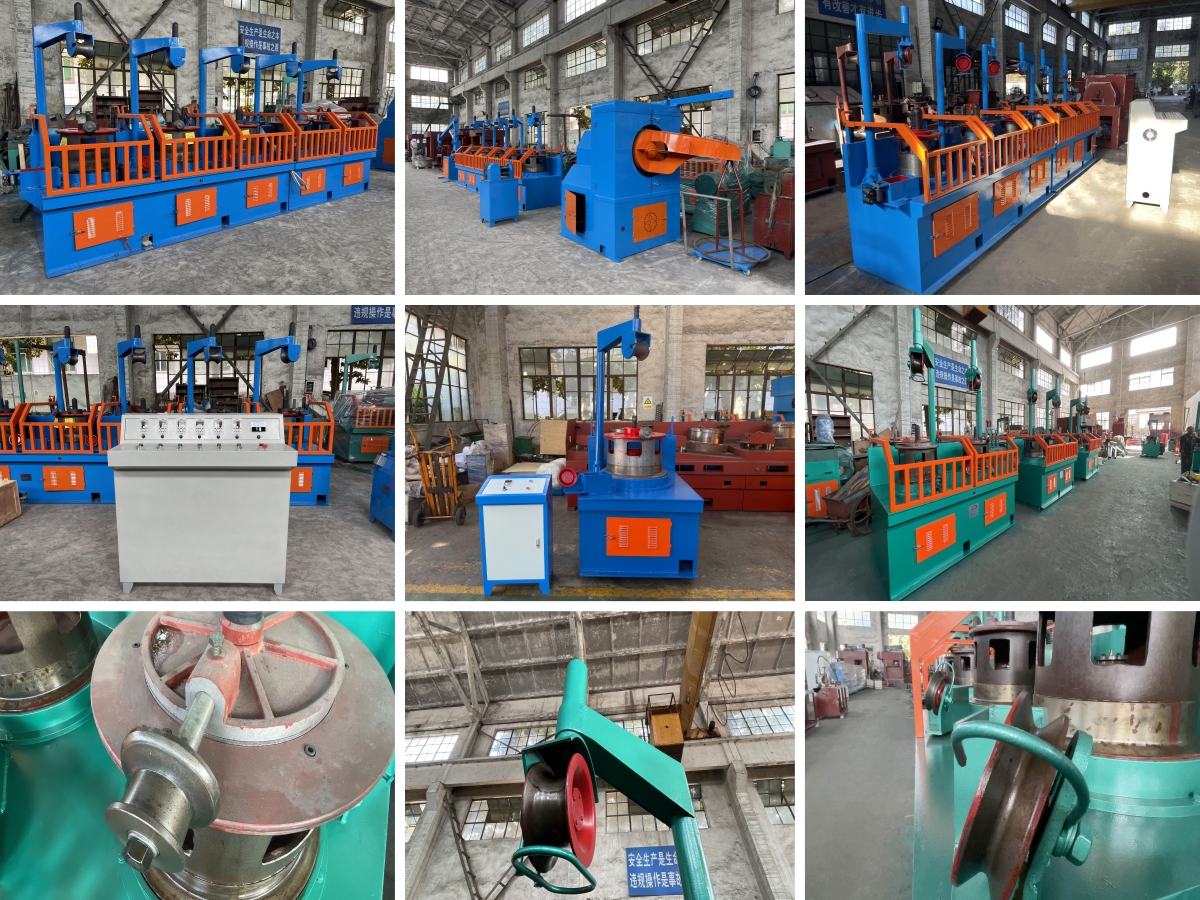

Pulley Type Wire Drawing Machine Details

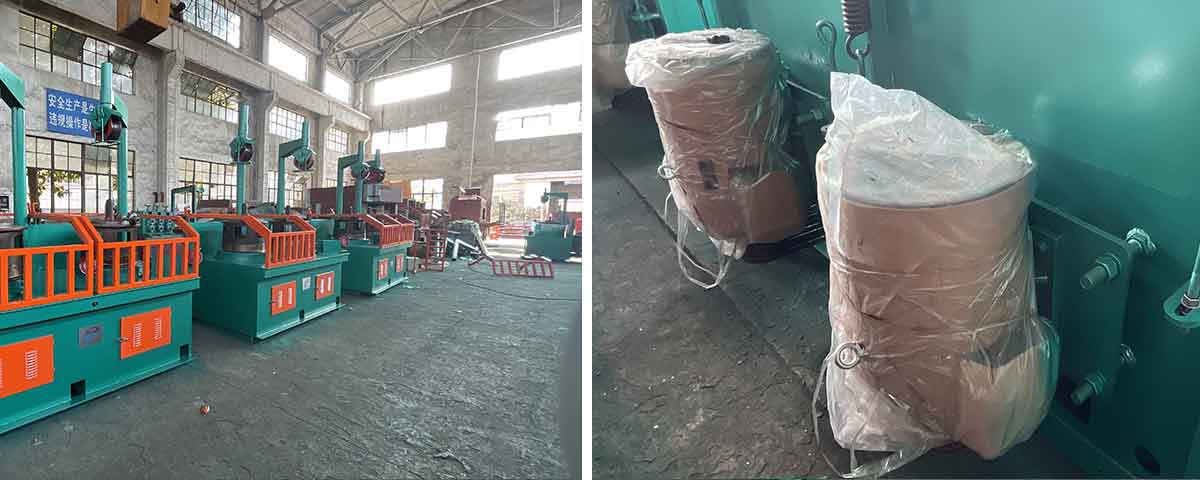

Container Loading of Pulley Type Wire Drawing Machine

oto type wire drawing machine


oto type wire drawing machine

Terms of Pulley Type Wire Drawing Machine

  • Delivery of Equipment: FOB China Port

  • Payment Terms: 40% By T/T in advance as down payment,

    60% By T/T or Irrevocable Confirmed L/C at sight before Shipment

  • Delivery Time: Within 30-60 days after receipt of the down payment

  • Packing: with plastic film safety packing

  • Guarantee: 12 months after commissioning or 18months after shipment. Whichever first is in valid. (It is excluding wear parts. Shipping cost for parts to be replaced during warranty period has to be borne by the customer.)

  • Installation and Start-up: 1-2 technicians and 1 interpreter will be assigned to coordinate installation, commissioning and training, for the maximum duration of 15 working days, the buyer will supply the air return tickets, food, accommodation (hotel and one day three meals), transportation, communication, insurance, tax (if have) for the technicians and the interpreter. USD100.00/day/person working fee will be paid to them.
