CS-B Type Barbed Wire Making Machine

CS-B Type Barbed Wire Making Machine

METAL TECH manufacture and supply three models barbed wire making machine: CS-A , CS-B and CS-C pls refer the below picture for the different three barbed wire, CS-A is for double wire,CS-B is for single wire and CS-C is for reverse double twist wire.


Different types of barbed wire need a different model to produce and this type of barbed wire we called horizontal type running more stable and with high capacity. Also, Metal Tech barbed wire machine install with a safety cover to protect workers because barbed wire machine all running parts are exposed.

GET A QUOTE
CS-B Type Barbed Wire Making Machine

Specifications of CS-B Type Barbed Wire Making Machine

Item

Unit

CS-B

Motor power

kw

2.2/3

Main shaft speed

r/min

355

Strand wire diameter

mm

1.6-3.0

Barb wire diameter

mm

1.6-3.0

Barb pitch

inch

3/4/5/6

Twist number

/

3

Production

/

17m/min

Raw material

Galvanized wire, PVC coating wire, black wire, etc

Power

380V 50HZ can be customized


Advantages of CS-B Type Barbed Wire Making Machine

Metal tech automatic barbed wire making machine, barbed wire making machine use high-quality material parts, such like NSK bearing, PARKER hydraulic system, quenching, and brazing gear ,international brand electric parts, etc, strict quality management all these guarantee superior quality and long performance barbed wire making machine life.

  • Manually installation, Easy to set up;

  • Steel cover on the driving shaft for safe operation;

  • Saving materials and high capacity;

  • Counter to count the number of barbs and calculate the length of barbed wire.

  • Button switches and levelers to start and stop the machine easily.

  • Quick and easy roll extraction from the machine.

  • Guiding system to avoid wire snarls.


Production Process of CS-B Type Barbed Wire Making Machine

Wire Pay off→ Wire mould→ Wire cutting→ Wire twisting→ Winding


Details of CS-B Type Barbed Wire Making Machine

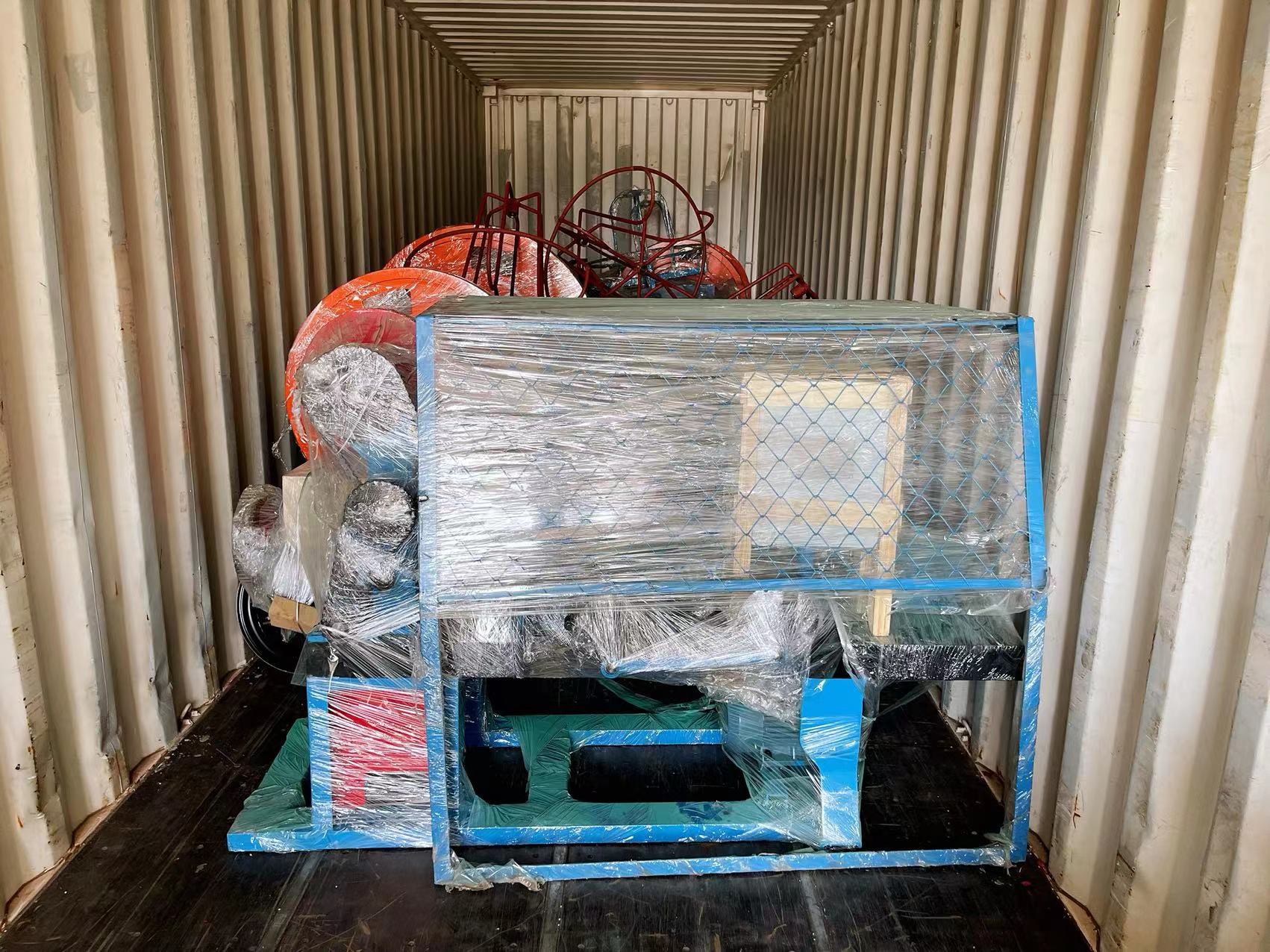

Container Loading of CS-B Type Barbed Wire Making Machine

CS-B Type Barbed Wire Making Machine

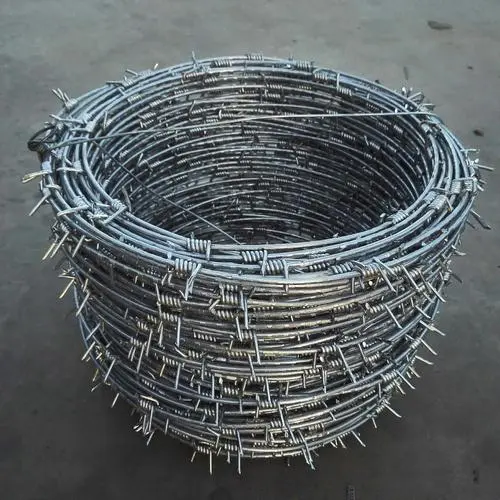

Finished Products of CS-B Type Barbed Wire Making Machine

Barbed Wire Fencing Machine

Metal Tech Care of CS-B Type Barbed Wire Making Machine
