Hot Dip Galvanizing Production Line

Hot Dip Galvanizing Production Line

Hot dip galvanizing line is main for wire galvanizing and ready for gabion machine, chain link fence machine, barbed wire making machine, wire mesh welding machine, etc.


Metal Tech has professional team can design for different requirement of the finished wire of different wire diameter, different zinc coating thickness and different capacity. So that clients should make sure the wire diameter&wire type, zinc thickness and yearly capacity.

GET A QUOTE
Hot Dip Galvanizing Production Line

Specifications of HOT DIP Galvanizing Production Line

Production Capacity for Different Diameter

No.

Diameter(mm)

DV(mm*m/min)

Max. Outlet Speed(m/min)

Single Line Production Capacity(Ton/24h)

30 Lines Production Capacity(Ton/24h)

1

φ1.5

80

≈53

≈1.0

≈30.0

2

φ2.0

80

40

1.5

45

3

φ2.5

80

32

1.7

51

4

φ3.0

80

≈26

≈2.0

≈51(25 Lines)

5

φ4.0

80

20

2.8

50.4(18 Lines)

Remark:
1. Production Capacity is calculated as 24 hours/day.
2. The production line capacity takes Φ 2.5mm steel wire as the standard wire diameter. When the steel wire diameter is greater than Φ 2.5mm, the number of

    threading wires should be reduced.


Advantages of HOT DIP Galvanizing Production Line

Metal tech Hot dip galvanizing line use high-quality material parts ,such like NSK bearing, PARKER hydraulic system , quenching and brazing half gear etc,strict quality management all these guarantee superior quality and long performance Hot dip galvanizing line life, also we have different quality and different zinc coating mode can meet all requirement from client.

Production Process of HOT DIP Galvanizing Production Line

Wire pay-off device(vertical)→ Straightening→ LPG Annealing→ Natural air cooling→ Water cleaning→ Turbulent smoke-free cleaning→ Water cleaning→ Plating flux→ Drying→ Hot Dip Galvanizing→ Wiping→ Cooling→ Wire take-up the device(vertical)

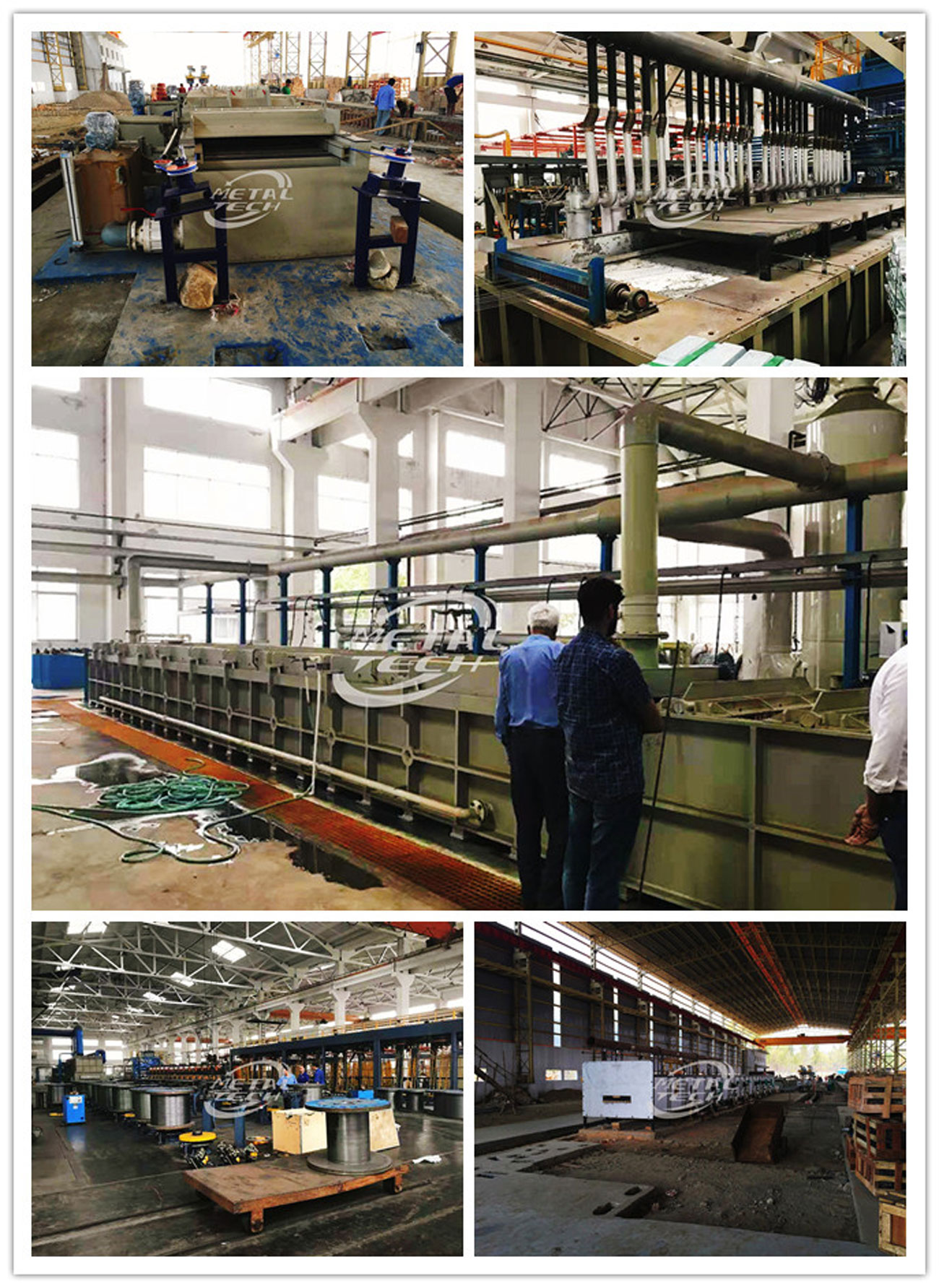

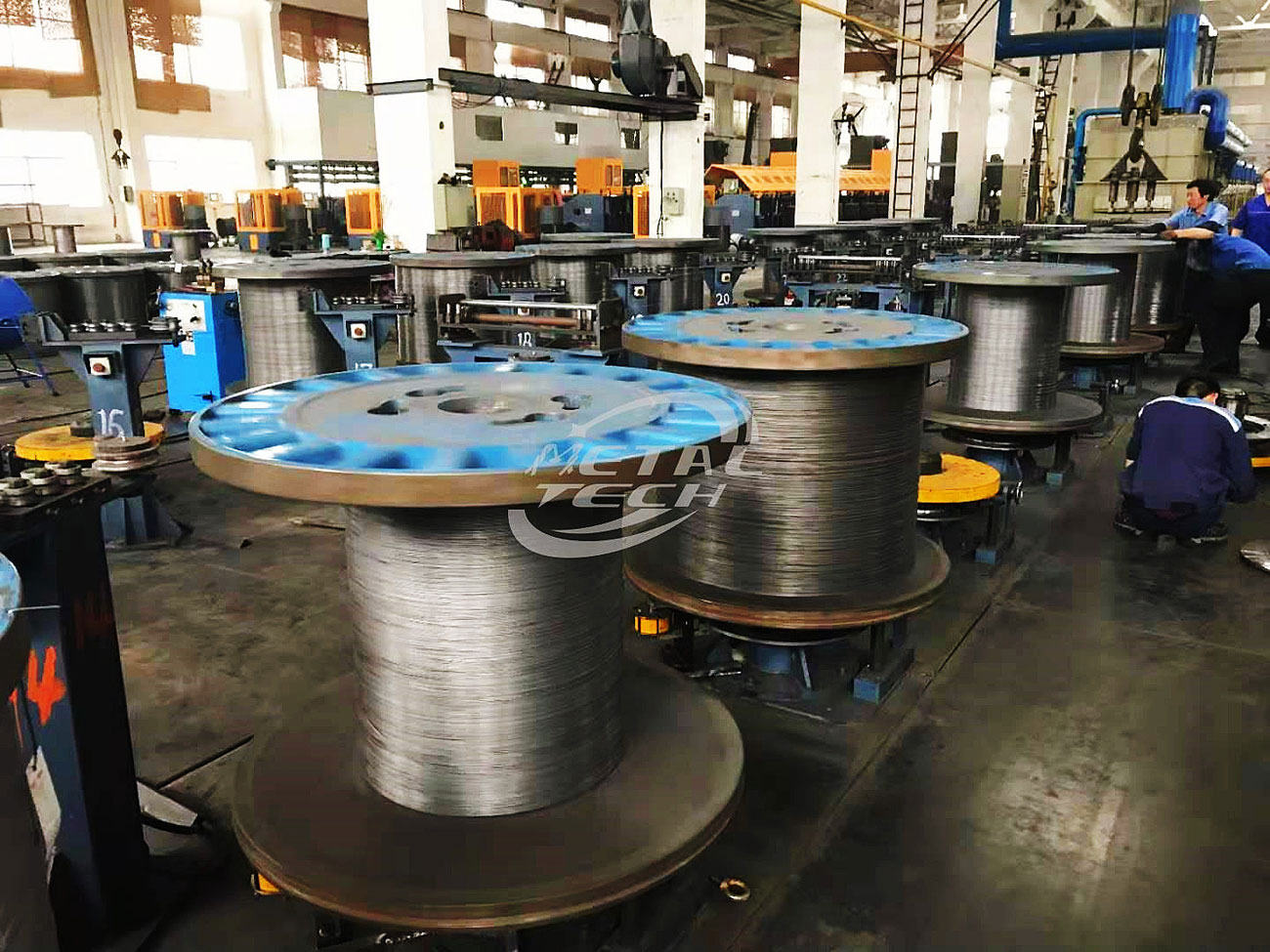

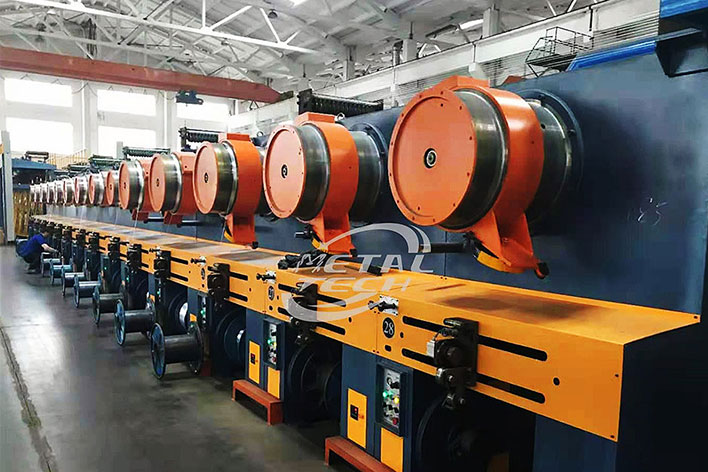

Details of HOT DIP Galvanizing Production Line

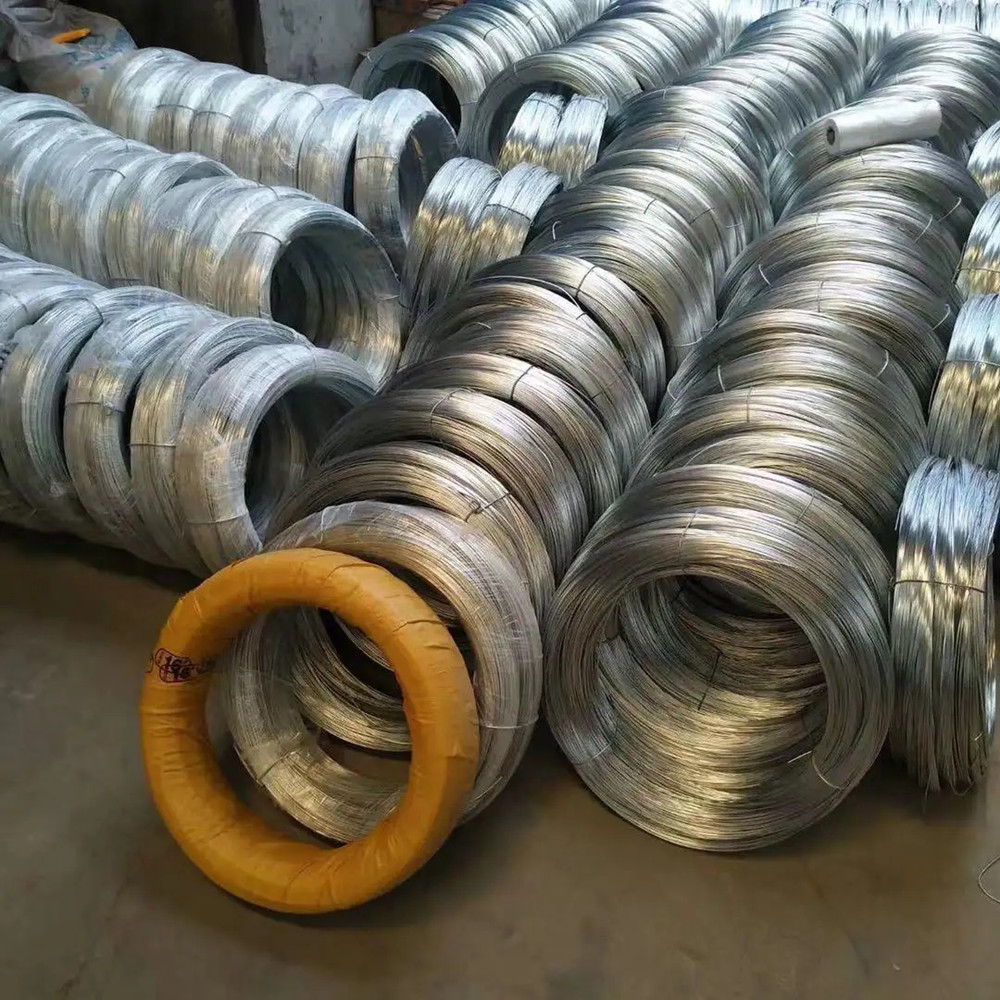

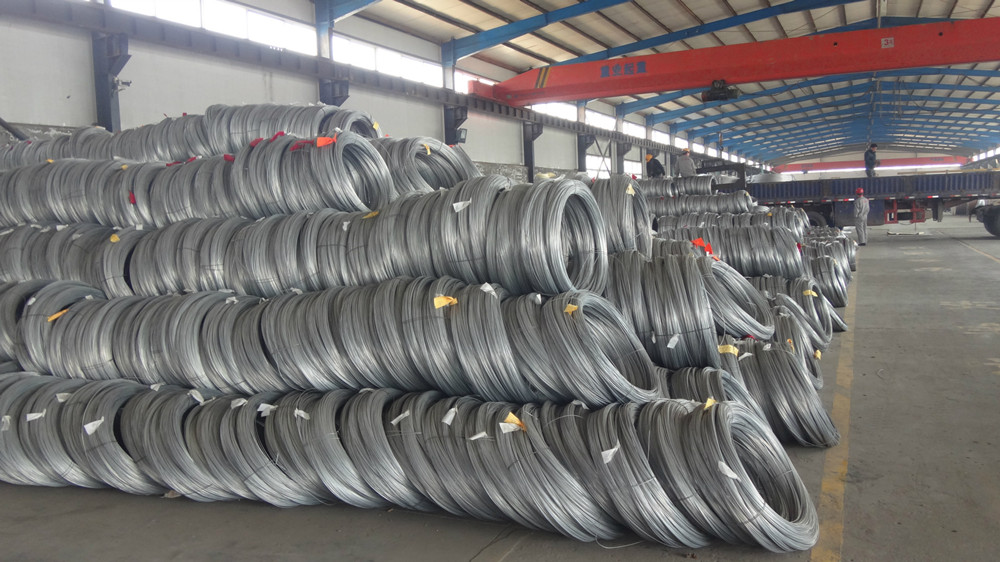

Finished Products of HOT DIP Galvanizing Production Line
