Gas Annealing Furnace

Gas Annealing Furnace

Metal tech Annealing furnace is one of the heat treatment equipment in mechanical industry. Which put the wire or metal parts in different heating furnaces, slowly heat them to a certain temperature, keep them for a period of time, and then cool them at an appropriate speed (usually natural cooling, sometimes controlled cooling).


According to different energy sources, it can be classified into electric energy, gas energy and oil energy. Users can choose according to their own situation. This is the annealing furnace of Gas energy.

GET A QUOTE
Gas Annealing Furnace

Specifications of Gas Annealing Furnace

Furnace specificationPower supply: Gas
Capacity:  2.0T/8hours
Burner: Baltur (Italy brand)
Furnace Body5mm Q235 board furnace shell
Lightweight firebrick Internal liner
Holocellulose alumina silicate keeping temperature
Heating element: Cr20Ni80
Furnace TubeThickness: 8mm,
Dia.: 800mm,
high: 1200mm
Material: Stainless Steel
Working Process of Annealing Wirea. Two hours heating to 650°C-700°C
b. Keeping Temperature 650°C-700°Cfor 2 hours
c. Keep the tube in the furnace, cooling for 4 hours till the temperature is about 300°C
d. Taking out of the tube put another one in
e. When the tube temperature is below 170°C, take the wire out


Advantages of Gas Annealing Furnace

Metal tech Annealing furnace use high-quality material parts, strict quality management all these guarantee superior quality and long performance Annealing furnace life.

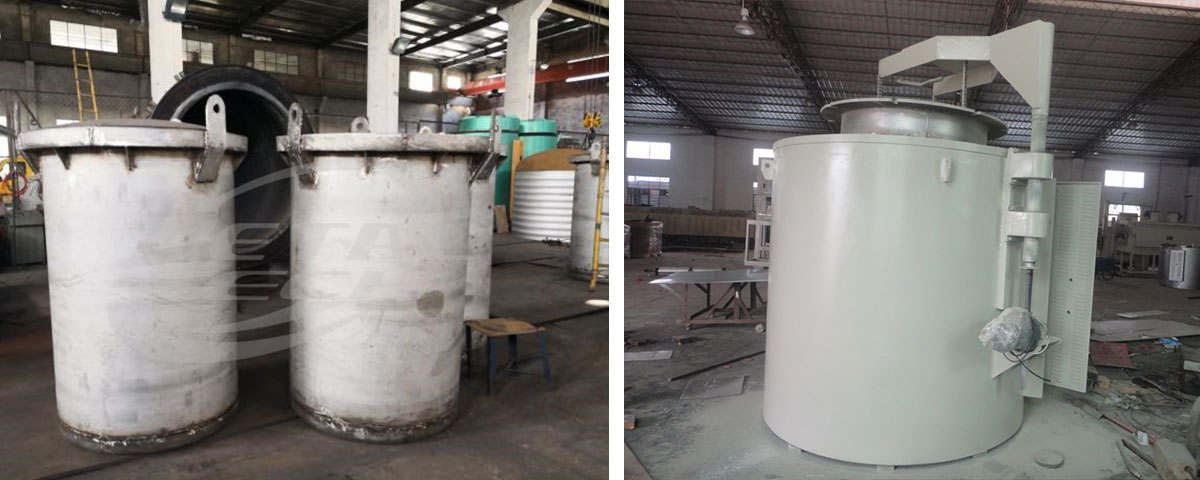

Details of Gas Annealing Furnace
