Single Wire Chain Link Fence Machine

Single Wire Chain Link Fence Machine

METAL TECH single wire chain link fence machine easy operation, running stable and long lifetime. Most suit for the poor quality raw material (wire).


Metal Tech single wire chain link fence with servo motor making the wire waving type with a different kind of mold then turn over the waving wire linking the next one to complete the net.Also, our net side locking device is highly effective and the shrinking machine can shrink the net for transportation. Metal Tech offers 2 to 4 meters different widths for client selection.

Chain Link Machine Price
Single Wire Chain Link Fence Machine

Specifications of Single Wire Chain Link Fence Machine

Netting width Specification

2M

3M

4M

No. of input wire

1

Capacity(based on mesh size 50mm*50mm)

60-70㎡/h

Power supply

380v 50Hz (other requirements can be custom-made)

Speed of the axle of shaped knife

200-700rpm

Suitable wire to the machine

Galvanized wire, PVC wire, steel wire

Diameter of wire

1.6-4.0mm(depend on the mesh size)

Power consumption

7.17kw, 5 motors(based on 4M, it relates to the dia. of wire, and the power can be custom-made.)

Mesh size

25*25mm-100*100mm

(if the mesh size is 25*25mm, the steel wire should be all soft)

Weight of equipment

2.2t

2.5t

3.0t

Main machine outer size

4.8m*1.1m*2.3m

5.5m*1.1m*2.3m

6.5m*1.1m*2.3m

Auxiliary machine outer size

2.5m*1.5m*1.1m

4m*1.5m*1.1m

4.5m*1.5m*1.1m

The color of machine

can be custom-made

Max. winding capacity

30 meters per roll


Advantages of Single Wire Chain Link Fence Machine

Metal tech automatic chain link fence machine use high-quality material parts, such like NSK bearing, PARKER hydraulic system, quenching, and brazing gear, international brand electric parts, etc, strict quality management all these guarantee superior quality and long performance chain link fence machine life.

Production Process of Single Wire Chain Link Fence Machine

Wire Pay Off→ Wire Mould→ Waving Wire→ Linking→ Lock Side → Winding

Details of Single Wire Chain Link Fence Machine

Chain Link Fence Machine Price

Container Loading of Single Wire Chain Link Fence Machine

Single Wire Chain Link Fence Machine

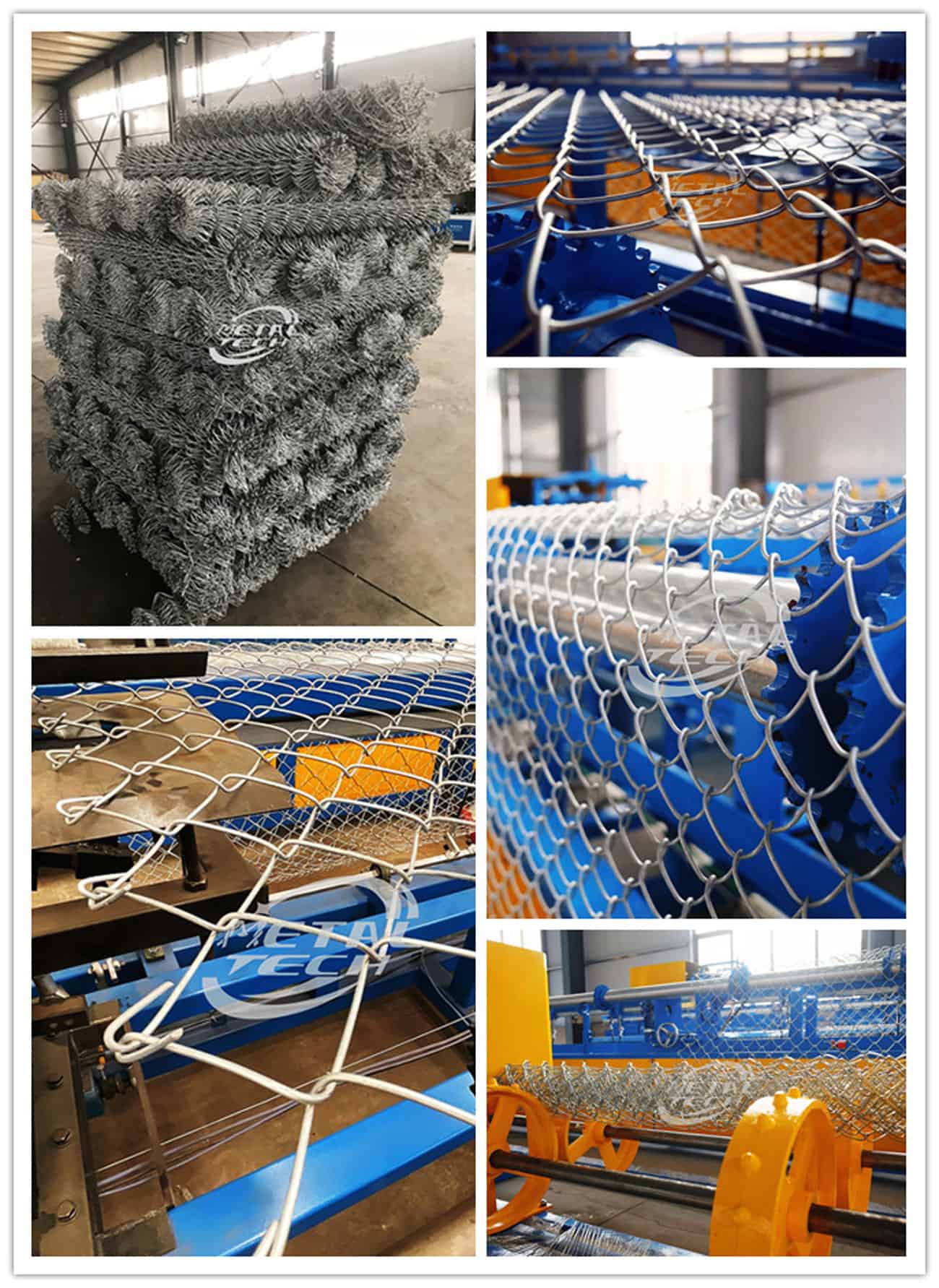

Finished Products of Single Wire Chain Link Fence Machine

Chain Link Machine Price

Metal Tech Care of Single Wire Chain Link Fence Machine
